What is a Water Heat Exchanger?

Water Heat Exchanger

1.What is a Water Heat Exchanger?

A water heat exchanger is a device designed to transfer heat between water and another fluid—such as air, oil, refrigerant, or process liquids—without allowing the two to mix. It enables efficient heating or cooling by using a thermally conductive barrier (such as tubes, coils, or plates) that separates the fluids while allowing heat to move between them. Water heat exchanger are widely used in domestic hot water systems, HVAC, industrial cooling, power plants, and for protecting sensitive electronic equipment from overheating. 📩 Request a Quote today for a custom-engineered water heat exchanger tailored to your process needs.

2.How Does a Water Heat Exchanger Work?

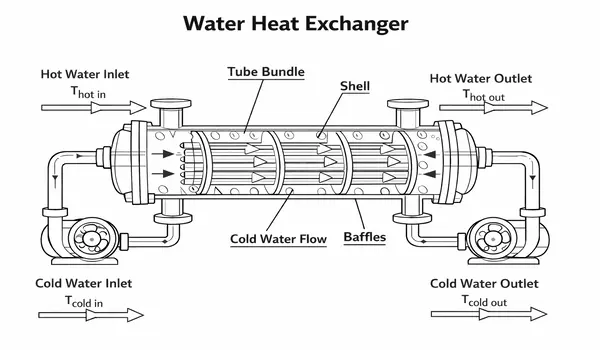

A water heat exchanger operates by transferring heat between two fluids—one of them being water—without allowing them to mix. The hot and cold fluids move through separate channels or passages, and heat flows from the hotter side to the cooler side through a conductive surface such as metal tubes or plates. This transfer follows basic thermodynamic principles: thermal energy always moves from a higher temperature to a lower temperature.

How the Heat Transfer Happens

Hot and cold fluids: A hot fluid and a cold fluid enter the heat exchanger through dedicated inlets. These fluids remain completely separated.
Conductive barrier: A highly conductive material—typically copper, aluminum, or stainless steel—forms the wall between the two fluids. It allows heat to pass through while keeping the fluids apart.
Thermal energy transfer: Heat from the hotter fluid moves through the barrier by conduction and is absorbed by the cooler fluid flowing on the opposite side.
Temperature change: The hot fluid exits the exchanger at a lower temperature, while the cold fluid exits warmer. These temperatures depend on flow rates, material type, and design.
Efficiency factors: Water heat exchanger are engineered to increase surface area and fluid turbulence, both of which improve heat transfer performance.

Configurations of Water Heat Exchanger?

Water heat exchanger configurations are determined by the flow arrangement and internal design of the unit. The direction in which the two fluids move relative to each other plays a major role in the heat exchanger’s efficiency, temperature approach, and pressure drop. These configurations can be broadly categorized into basic flow patterns and more advanced hybrid setups.

Basic Flow Configurations

Countercurrent Flow: In this highly efficient arrangement, the two fluids move in opposite directions. This creates a nearly constant temperature gradient along the heat exchanger, allowing the cooler fluid to exit at a higher temperature than the outlet of the hot fluid. Countercurrent flow provides maximum heat recovery and is widely used in industrial applications.
Cocurrent (Parallel) Flow: Both fluids flow in the same direction. While less efficient than countercurrent flow, cocurrent design offers stable temperature distribution across the heat transfer surface and is often used in applications where gentle heating or cooling is required.
Crossflow: The fluids flow perpendicular to one another. This configuration is commonly used in compact designs like air-to-water or water-to-air systems. One fluid typically remains unmixed or partially mixed, depending on the internal geometry.

Hybrid and Advanced Configurations

Hybrid Flow: Combines two or more basic flow patterns—such as cross-counterflow—to optimize heat transfer or meet specific footprint requirements. These designs improve efficiency while accommodating space or process constraints.
Multi-Pass Flow: To increase contact time and enhance heat transfer, fluids may be routed through multiple passes. Shell-and-tube heat exchangers often feature one-pass, two-pass, or multi-pass arrangements that redirect flow using baffles or U-tubes.

Other Ways to Classify Water Heat Exchanger

By Construction Type: Common designs include shell-and-tube, plate, tube-in-tube, and coil heat exchangers—each tailored for different pressures, temperatures, and flow conditions.
By Number of Passes: Exchangers can be configured as single-pass (fluids meet once) or multi-pass (fluids meet several times), depending on the required heat duty and available space.

Performance Optimization of water heat exchanger?

Performance optimization of a water heat exchanger focuses on improving heat transfer efficiency, reducing pressure drop, and ensuring long-term reliability through smart operational strategies, effective design choices, and proactive maintenance. By fine-tuning flow conditions, selecting advanced materials, and preventing fouling, industries can significantly enhance thermal performance, energy efficiency, and system lifespan. Proper optimization ensures lower operating costs, improved temperature control, and higher overall productivity in HVAC systems, industrial processes, chemical plants, and power generation.

Operational Optimization

Optimize fluid flow rates: Increasing flow velocity enhances turbulence and improves heat transfer coefficients. However, flow must be balanced against pressure drop and pumping energy to maintain system efficiency.
Maintain ideal operating temperatures: Operate at the optimal temperature difference (LMTD) to ensure efficient heat transfer without stressing equipment.
Use heat recovery systems: Incorporate waste-heat recovery to preheat incoming fluids, significantly improving energy efficiency and reducing fuel or electricity consumption.
Control fouling conditions: Operate within recommended fluid velocity ranges to minimize sedimentation, scale formation, and biological growth.

Design and Material Optimization

Increase effective surface area: Use extended surfaces, fins, or corrugated plates to maximize contact area between the hot and cold fluids, significantly improving thermal performance.
Select the right flow configuration: Counter-flow designs are typically the most efficient, offering higher heat transfer rates compared to crossflow or parallel flow.
Use high-conductivity materials: Choose materials like copper, aluminum, or high-grade stainless steel to improve thermal transfer and corrosion resistance. Advanced fluids such as nanofluids can dramatically boost heat-transfer capabilities.
Improve internal geometry: Integrate turbulators, spiral plates, dimpled tubes, or metal foams to increase internal turbulence without excessively raising pressure drop.
Optimize thermal design using advanced methods: Use design tools to calculate optimal tube diameters, plate spacing, pass arrangements, and flow distribution for maximum performance.

Maintenance and Monitoring

Regular cleaning and descaling: Periodic cleaning prevents fouling—such as scale, rust, algae, or debris—that reduces thermal efficiency and increases operating costs.
Preventive maintenance schedules: Conduct routine inspections, leak checks, and gasket replacements to avoid unplanned shutdowns.
Real-time monitoring: Install sensors to track temperatures, pressure drops, and flow rates. Early detection of performance drops allows for timely interventions.
Fouling mitigation strategies: Use anti-fouling coatings, water treatment systems, or filtration to minimize deposits and extend exchanger lifespan.

Advanced Optimization Techniques

Computational simulations (CFD): Use Computational Fluid Dynamics to evaluate fluid behavior, identify hotspots, optimize turbulence levels, and refine design before manufacturing.
AI and optimization algorithms: Techniques like genetic algorithms, neural networks, and particle swarm optimization help identify the most efficient geometric and operating parameters.
Digital twins: Create virtual models that run in parallel with real heat exchangers to predict performance issues, optimize flow rates, and reduce downtime.

Types of Water Heat Exchanger

Water heat exchanger come in several designs based on their construction and flow configuration. Each type offers unique advantages depending on the application, operating conditions, and heat transfer requirements.

By Construction

Shell and Tube Heat Exchangers
These exchangers consist of a bundle of tubes housed within a cylindrical shell. One fluid flows inside the tubes, while the other circulates around them in the shell.
- Ideal for high-pressure and high-temperature applications.
- Extremely durable and suitable for industrial processes
- Can be single-pass, two-pass, or multi-pass to boost heat transfer
- Commonly used in power plants, chemical processing, and refineries
Plate Heat Exchangers
Plate heat exchangers use multiple thin, corrugated plates to create alternating channels for hot and cold fluid flow. Their design maximizes surface area and enables highly efficient heat transfer in a compact footprint.
- Available as gasketed, brazed, or welded versions
- Suitable for moderate pressure applications
- Easy to clean and maintain
- Commonly used in HVAC, food processing, and water heating systems
Air-Cooled (Water-to-Air) Heat Exchangers
These exchangers use ambient air as the cooling medium instead of another fluid. Water or water-glycol mixture flows through finned coils, while air is blown across the fins to remove heat.
- Ideal where water availability is limited
- ICommon in HVAC, generators, compressors, and remote installations
- IEnergy-efficient and low-maintenance

By Flow Configuration

Counter-Flow (Countercurrent)
Hot and cold fluids move in opposite directions, maintaining a high temperature difference along the length of the exchanger.
- Most efficient flow pattern
- Allows the cold fluid to reach temperatures close to the hot fluid’s outlet
- Used in high-efficiency plate and shell-and-tube systems
Parallel-Flow (Cocurrent)
Both fluids flow in the same direction.
- Less efficient than counter-flow.
- Provides more uniform wall temperatures.
- Useful in applications requiring gentle heating or cooling.
Crossflow
The two fluids flow perpendicular to each other.
- Common in air-cooled and compact heat exchangers
- Suitable for applications where one fluid is a gas or air
Hybrid Configurations
Many systems combine multiple flow arrangements to enhance performance.
- Includes multi-pass, cross-counterflow, and mixed-flow designs
- Used to boost heat transfer without increasing equipment size

Components of a Water Heat Exchanger

A water heat exchanger is built from several key components that work together to transfer heat efficiently between water and another fluid. While the exact design varies by type—such as shell-and-tube or plate—the core elements typically include the heat-transfer surfaces, support structures, flow-directing parts, and sealing mechanisms. Each component plays a critical role in achieving high thermal performance, pressure stability, and leak-free operation.

Core Components

Shell: The outer casing that encloses the heat exchanger. In shell-and-tube designs, the shell contains one of the fluids and houses the entire tube bundle.
Tubes: A bundle of straight or U-shaped tubes that carry one of the fluids—often water. Heat is transferred through the thin walls of the tubes to the surrounding fluid.
Tube Sheets: Thick metal plates located at one or both ends of the exchanger. They hold the tubes in place, maintain spacing, and separate the fluids to prevent mixing.
Baffles: Internal plates installed inside the shell to direct fluid flow, increase turbulence, and improve heat transfer efficiency. They also support the tube bundle structurally.

Fluid Handling and Sealing Components

Headers / Plenums: These are end connections where fluids enter and exit the heat exchanger. They distribute fluid into the tubes or shell and connect to external pipelines.
Gaskets: Sealing elements used in plate and gasketed heat exchangers to prevent leaks and ensure the fluids follow the designed flow path. They are also used in covers and flanges for shell-and-tube units.

Additional Components

Inlets and Outlets: Nozzles or ports for fluid entry and discharge. Their size and placement impact flow rate, pressure drop, and thermal performance.
Tie Rods & Spacers: Mechanical supports that hold baffles in position and maintain spacing between plates or internal components.
Fins: Extended surfaces added to tubes or external areas to increase surface area and improve heat transfer, commonly used in air-cooled or finned-tube water exchangers.

Applications of water heat exchanger

Water heat exchanger are widely used across residential, commercial, and industrial sectors to transfer heat efficiently between water and another fluid or air. They play a critical role in heating, cooling, temperature regulation, energy recovery, and process optimization. These systems help maintain thermal balance, improve energy efficiency, reduce operational costs, and support sustainable practices in a wide range of industries.

Heating and Cooling Applications

HVAC Systems: Used in central heating and cooling systems to transfer energy between chilled water, hot water, and air, ensuring effective climate control in commercial and residential buildings.
Domestic Hot Water Heating: Used with boilers, solar water heaters, or heat pumps to heat water for household use while keeping the fluids separated for hygiene and safety.
Chilled Water Systems: Circulate chilled water through air handlers and fan coil units for large-scale air conditioning.
Swimming Pools: Maintain consistent pool water temperature by transferring heat from boilers, heat pumps, or solar systems.
Energy-Efficient Showers: Preheat incoming cold water using waste heat from discharged warm water, reducing energy consumption.

Industrial and Power Generation Applications

Industrial Process Cooling and Heating: Maintain precise temperatures in manufacturing, chemical processing, petrochemicals, oil & gas, textile production, plastics, and other industries.
Power Plants: Recover heat from turbine exhaust, condensers, and other systems to preheat water, improving thermal efficiency and reducing fuel consumption.
Wastewater Treatment: Control thermal conditions during treatment and cool industrial wastewater before release into municipal systems.
Marine and Offshore Systems: Used for cooling marine engines, lubricants, and hydraulic systems, as well as for onboard water heating.

Food, Beverage & Specialty Applications

Food & Beverage Processing: Used extensively for batch cooling, pasteurization, sterilization, flash heating, and chilling products like milk, juices, beer wort, and other consumables.
Pharmaceutical & Biotech: Ensure sterile, contamination-free heating and cooling during drug manufacturing and fermentation processes.
Automotive Systems: Car radiators, oil coolers, and engine cooling systems are specialized forms of water-based heat exchangers.

Benefits of Using water heat exchanger

Water heat exchanger offer significant advantages across residential, commercial, and industrial applications. They enhance system efficiency, reduce energy bills, lower environmental impact, and ensure precise temperature control for various processes. Their compact design, durability, and ability to recover waste heat make them essential components in HVAC systems, manufacturing, power generation, food processing, and more.

Energy Efficiency and Cost Savings

Recover waste heat: Water heat exchanger capture thermal energy that would otherwise be lost and transfer it to another fluid for reuse, boosting overall system efficiency.
Reduce energy consumption: By reusing heat, systems require less fuel or electricity for heating or cooling, directly cutting energy usage.
Lower operating costs: Improved efficiency leads to long-term savings on utility bills and operational expenses.

Environmental Benefits

Lower carbon footprint: Reduced energy consumption leads to fewer greenhouse gas emissions, helping industries meet sustainability goals.
Water conservation: Many exchangers enable water reuse within industrial systems, reducing freshwater demand and minimizing wastewater output.
Reduced pollution: Efficient heat recovery results in cleaner operation and supports eco-friendly industrial practices.

Process and Operational Advantages

Precise temperature control: Water heat exchanger ensure stable temperatures for sensitive processes in pharmaceuticals, food processing, electronics cooling, and chemical manufacturing.
Compact and space-saving:Modern designs, such as plate heat exchangers, offer high performance in a small footprint—ideal for tight installations.
System optimization: Stable thermal conditions improve equipment performance, extend system life, and reduce unexpected downtime.
Enhanced safety: By preventing cross-contamination and enabling rapid heating or cooling, heat exchangers support safe operation in critical water treatment and industrial applications.

Reliability and Longevity

Long-term durability: Built from robust materials like stainless steel, copper alloys, or titanium, water heat exchanger offer long service life even in demanding environments.
Corrosion resistance: Protective features—such as titanium enamel coatings or magnesium anodes—help prevent corrosion, especially in hard-water or corrosive fluid conditions.
Low maintenance needs: With proper cleaning and inspection, these systems deliver reliable performance with minimal upkeep.

Specifications of water heat exchanger

Water heat exchanger come in a wide range of sizes and configurations, with specifications determined by the intended application, fluid properties, and operational requirements. Key specifications cover performance, physical dimensions, materials, and design standards.

Performance and Operational Specifications

Heat Transfer Capacity: Typically ranges from under 1 kW for small applications to over 10,000 kW for industrial systems.
Flow Rate: Water flow can vary from 22.7 L/min (6 gpm) to over 57 L/min (15 gpm) or more, depending on the model.
Operating Pressure: Normal operating pressures range from 60 psi (414 kPa) up to 50 bar, with test pressures reaching 80 bar for safety verification.
Operating Temperature: Can handle fluids from ambient temperatures up to 340 °C (644 °F).
Pressure Drop: Design accounts for allowable pressure losses across the exchanger to ensure efficient system operation.

Physical and Material Specifications

Dimensions: Compact units may measure 370×307×151 mm, while large industrial exchangers are significantly bigger.
Materials of Construction:
- Plates: Stainless steel grades 304 or 316L are commonly used in plate heat exchangers.
- Tubes: Copper-nickel (CuNi) or other alloys are used for shell-and-tube types.
- Gaskets: Materials such as EPDM, NBR, or PTFE provide reliable sealing.
Heat Transfer Area: Can range from 0.18 m² in small units to over 3,400 m² in large plate heat exchangers.

Design and Compliance Specifications

Flow Configuration: Parallel flow, counter-flow, or cross-flow arrangements influence efficiency.
Design Codes and Standards: Compliance with ASME Section VIII, EN 13445, or other applicable codes is essential for safety and reliability.
Weight: Small exchangers may weigh under 30 kg, whereas industrial models can weigh several hundred kilograms.
Construction Details: Includes shell, tube bundle, tube sheets, headers, and baffles, designed to optimize heat transfer and fluid flow.

Design Standards & Certification

Water heat exchanger are designed and manufactured according to internationally recognized standards to ensure safety, reliability, efficiency, and regulatory compliance. These standards cover design, materials, performance, hygiene, and manufacturing quality management.

Key Design Standards

ASME (American Society of Mechanical Engineers): Provides comprehensive rules for designing pressure vessels, including heat exchangers, covering material selection, stress calculations, fabrication, and testing procedures.
TEMA (Tubular Exchanger Manufacturers Association): Defines the design and classification of shell-and-tube heat exchangers, including various configurations such as TEMA R, C, and B. Widely adopted globally for industrial applications.
API (American Petroleum Institute): Offers standards specific to the oil and gas industry, such as API 660 for shell-and-tube heat exchangers and API 661 for air-cooled heat exchangers.
ISO 9001: Specifies requirements for a quality management system in manufacturing, ensuring consistent product quality, process control, and customer satisfaction.

Comparing water heat exchanger

Type of Water Heat Exchanger	Construction / Design	Flow Configuration	Applications	Advantages	Limitations
Shell and Tube	Bundle of tubes enclosed in a cylindrical shell; tube sheets, baffles, and headers included	Counter-flow, parallel-flow, multi-pass	Industrial processes, power plants, oil & gas	Handles high pressures and temperatures; robust; suitable for large-scale systems	Large footprint; maintenance can be labor-intensive; lower heat transfer efficiency per unit area compared to plate type
Plate Heat Exchanger	Corrugated plates stacked together with gaskets; compact design	Counter-flow, parallel-flow	HVAC, domestic hot water, chemical processing	High heat transfer efficiency; compact; easy to clean and maintain	Sensitive to fouling; limited pressure handling compared to shell-and-tube
Air-Cooled Heat Exchanger	Finned tubes or coils; uses ambient air for cooling	Cross-flow or forced-air	HVAC, remote cooling, industrial exhaust cooling	No water consumption; low operating cost; simple installation	Requires sufficient airflow; less efficient in high ambient temperatures
Coil / Tube-in-Tube	One fluid flows inside a coiled tube; other flows around it	Counter-flow, co-current	Small-scale industrial, laboratory, and marine applications	Compact; easy to install; good thermal efficiency	Limited capacity; may require frequent maintenance for fouling prevention
Hybrid / Multi-Pass	Combination of shell, tube, and/or plate designs	Multi-pass, cross-counterflow	Process industries, complex heat recovery systems	Enhanced heat transfer efficiency; customizable	Complex design; higher initial cost

Case Studies / Real Applications

Water heat exchanger are widely used across industries and domestic applications to improve energy efficiency, control temperature, and optimize processes. Below are real-world examples demonstrating their versatility and impact.

1. HVAC Systems in Commercial Buildings

Application: Plate and shell-and-tube heat exchangers are used to transfer heat between chilled water and air handling units.
Outcome: Reduced energy consumption for air conditioning by up to 30%, improved indoor temperature control, and lower operational costs.
Key Benefit: Compact plate exchangers allowed installation in limited mechanical rooms without sacrificing performance.

2. Industrial Process Cooling

Application: Shell-and-tube heat exchangers used in chemical and pharmaceutical plants to cool reactor fluids.
Outcome: Maintained precise temperature control essential for chemical reactions, ensuring consistent product quality.
Key Benefit: Multi-pass design increased heat transfer efficiency while handling high-pressure process fluids safely.

3. Domestic Hot Water Systems

Application: Plate heat exchangers in residential and hotel buildings transfer heat from central boilers or solar thermal systems to domestic water.
Outcome: Provided instant hot water supply while minimizing energy waste.
Key Benefit: Compact design and easy maintenance improved operational reliability in high-demand environments.

4. Power Plant Waste Heat Recovery

Application: Shell-and-tube heat exchangers capture heat from flue gases to preheat feedwater.
Outcome: Improved overall plant efficiency, reduced fuel consumption, and lowered emissions.
Key Benefit: Enhanced sustainability and cost savings through effective energy recovery.

5. Marine and Automotive Applications

Application: Tube-in-tube and plate heat exchangers used for engine cooling and heating auxiliary systems in ships and vehicles.
Outcome: Prevented engine overheating, optimized fuel efficiency, and ensured safe operation in harsh environments.
Key Benefit: Durable materials such as CuNi and stainless steel ensured long-term reliability in corrosive seawater environments.

How to Buy water heat exchanger—A Step-by-Step Guide

Purchasing the right water heat exchanger is crucial for efficiency, longevity, and cost-effectiveness. The following steps provide a clear roadmap for selecting the ideal unit for your application.

1. Identify Your Application Requirements

Determine whether the heat exchanger will be used for heating, cooling, or heat recovery.
Define the type of fluids (water, glycol, oil, or process liquids) and whether they are clean, corrosive, or prone to fouling.
Specify flow rates, temperatures, and pressures required for your system.

2. Choose the Right Type of Heat Exchanger

Shell-and-Tube: Best for high-pressure, high-temperature industrial applications.
Plate Heat Exchanger: Ideal for compact installations and high-efficiency applications.
Air-Cooled: Suitable where water is scarce or for cooling using ambient air.
Coil / Tube-in-Tube: Compact systems or laboratory applications.

3. Consider Materials and Construction

Plates or Tubes: Stainless steel (304, 316L) for corrosion resistance; copper alloys for high thermal conductivity.
Gaskets and Seals: EPDM, PTFE, or NBR depending on fluid compatibility and temperature.
Baffles and Fins: Evaluate if turbulence enhancement or extended surface area is needed.

4. Check Performance Specifications

Verify heat transfer capacity (kW), pressure ratings, and operating temperature ranges.
Ensure the pressure drop is within system tolerances to avoid excessive pumping costs.
Confirm flow configuration (counter-flow, parallel-flow, cross-flow) for maximum efficiency.

5. Ensure Compliance with Standards and Certifications

Check ASME, TEMA, API, AHRI, BIS, or ISO certifications depending on your industry and region.
Confirm material test certificates (MTC) for critical components.
Ensure the manufacturer follows ISO 9001 or equivalent quality management standards.

Installation Guidelines

Proper installation is crucial for ensuring the efficiency, safety, and longevity of a water heat exchanger. The process involves careful planning, correct positioning, proper connections, and adherence to safety standards.

Pre-Installation Preparation Before installation, the site should be evaluated for adequate space, ventilation, and accessibility for future maintenance. The heat exchanger must be inspected to ensure it has not sustained any damage during transportation, and all components, including gaskets and seals, should be verified. The piping layout, including valves, flow meters, and pressure gauges, should be reviewed to confirm proper alignment and flow paths.
Mounting and Support The heat exchanger should be positioned on a level, stable surface or a suitable mounting frame, ensuring proper alignment to prevent stress on tubes, plates, or the shell. Support structures such as brackets or saddles must be capable of carrying the full weight of the exchanger along with the operational fluids. Sufficient clearance around the unit should be maintained to allow proper airflow, inspections, and routine maintenance.
Connection and Piping All piping connections should be completed according to the flow directions for both shell-side and tube-side fluids. Flexible connectors or expansion joints are recommended to accommodate thermal expansion and vibrations. Isolation valves should be installed to facilitate maintenance or cleaning without requiring a full system shutdown. Proper drain and vent lines must be provided to prevent airlocks and ensure complete system filling.
Testing and Commissioning Pressure testing, either hydrostatic or pneumatic, must be conducted to ensure the system is leak-free before full operation. The system should be flushed to remove debris and scaling that could affect performance. All instruments, including temperature sensors, flow meters, and pressure gauges, should be calibrated. Fluids should be introduced gradually to avoid thermal shock, and the system’s operational parameters should be closely monitored to confirm that the heat exchanger meets its design specifications.
Maintenance Considerations During installation, considerations for future maintenance must be accounted for, including sufficient access for mechanical or chemical cleaning. Spare gaskets, seals, and replacement plates or tubes should be readily available. Monitoring devices for temperature, pressure, and flow rates should be installed to enable continuous performance tracking.
Safety Precautions Personnel must wear appropriate personal protective equipment (PPE) such as gloves and safety glasses during installation. All procedures should comply with ASME, TEMA, and local pressure vessel regulations. Introducing hot or cold fluids gradually is important to prevent thermal stress and potential damage to the exchanger.

Water heat exchanger Replacement and Maintenance Services

Regular maintenance and timely replacement are essential to ensure optimal performance and longevity of water heat exchanger. Proper care reduces downtime, prevents costly repairs, and improves energy efficiency across systems.

Replacement Services Water heat exchanger may need replacement when efficiency drops, leaks develop, or parts become corroded beyond repair. Professional replacement ensures compatibility with existing systems and restores optimal thermal performance. High-quality units and precise installation minimize future operational issues.
Routine Maintenance Routine maintenance includes cleaning, inspection, and lubrication to prevent fouling and corrosion. Scheduled checks ensure that flow rates, temperatures, and pressure drops remain within design specifications. Preventive maintenance helps extend the life of the exchanger while reducing unexpected breakdowns.
Cleaning and Fouling Prevention Mechanical or chemical cleaning removes scale, sediment, and biological deposits from the tubes or plates. Using anti-fouling coatings or water treatment systems helps maintain efficient heat transfer. Regular cleaning prevents energy loss and ensures consistent performance.
Inspection and Testing Periodic inspection identifies leaks, cracks, or worn gaskets before they affect operations. Pressure and performance tests confirm the system meets design requirements. Detecting issues early reduces downtime and ensures operational safety.
Parts Replacement and Upgrades Gaskets, seals, plates, and tubes may require replacement due to wear or damage. Upgrading materials or components can enhance efficiency, corrosion resistance, and durability. Proper replacement improves overall system reliability and reduces maintenance costs.
Monitoring and Performance Optimization Installing sensors for temperature, flow, and pressure allows continuous monitoring of the exchanger’s performance. Performance data can guide operational adjustments and preventive maintenance. Optimized monitoring extends service life and improves energy efficiency.

How to Clean a water heat exchanger

Regular cleaning of a water heat exchanger is essential to maintain efficiency, prevent fouling, and extend its service life. The cleaning method depends on the type of heat exchanger and the level of contamination.

Safety Precautions Before cleaning, shut down the system and isolate the heat exchanger. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses. Ensure that all pressure and temperature in the system have returned to safe levels.
Mechanical Cleaning For shell-and-tube exchangers, use brushes or tube cleaning tools to remove scale, sediment, and deposits inside the tubes. Plate heat exchangers can be dismantled, and individual plates can be cleaned using soft brushes or high-pressure water jets. Mechanical cleaning is effective for loose debris and moderate fouling.
Chemical Cleaning Chemical cleaning is used for stubborn scale, mineral deposits, or biological growth. Circulate an appropriate cleaning solution through the heat exchanger as per manufacturer guidelines. After chemical treatment, thoroughly flush the system with clean water to remove all residues.
Flushing and Rinsing After cleaning, flush the heat exchanger with clean water to remove debris, chemical residues, or loosened deposits. Ensure that all channels are clear and no blockages remain, which can affect flow and heat transfer efficiency.
Inspection After Cleaning Inspect tubes, plates, gaskets, and seals for damage or wear. Replace any worn or compromised parts to maintain performance and prevent leaks. Check for corrosion, cracks, or other signs of deterioration.
Reassembly and Testing Reassemble the heat exchanger carefully, ensuring all gaskets and seals are properly positioned. Test the system for leaks, pressure, and temperature to confirm normal operation before returning it to service.

Regular cleaning of a water heat exchanger prevents fouling, maintains heat transfer efficiency, and prolongs the unit’s operational life. Following manufacturer recommendations ensures safety and optimal performance.

Why Choose United Cooling Systems Pvt. Ltd.?

United Cooling Systems Pvt. Ltd. is a trusted manufacturer of high-quality water heat exchanger and industrial cooling solutions, serving a wide range of industries. With decades of experience, the company delivers products designed for efficiency, durability, and optimal thermal performance, ensuring your systems run reliably while minimizing energy consumption.

The company stands out for its commitment to innovation, adherence to international standards like ASME, TEMA, and BIS, and excellent customer support. From customized solutions to timely installation and maintenance services, United Cooling Systems ensures every client receives a reliable, cost-effective, and long-lasting cooling solution.

Conclusion

Water heat exchanger are critical components in a wide range of applications, from domestic hot water and HVAC systems to industrial processes and power generation. They efficiently transfer heat between fluids without mixing, improving energy efficiency, reducing operating costs, and ensuring precise temperature control.

Choosing the right type, ensuring proper installation, and performing regular maintenance are essential to maximize performance and longevity. With expert solutions from a trusted manufacturer like United Cooling Systems Pvt. Ltd., businesses and households can rely on high-quality, durable, and efficient heat exchangers tailored to their specific needs.

FAQ – Water Heat Exchanger

1. What is a water heat exchanger?
A water heat exchanger is a device that transfers heat between water and another fluid (air, oil, steam, refrigerant) without mixing them. It is used for heating, cooling, and energy recovery across industrial and commercial applications.

2. How does a water heat exchanger work?
It works by allowing hot and cold fluids to flow through separate channels—tubes, plates, or coils—where heat transfers through a conductive surface. The hot fluid releases heat, and the cold fluid absorbs it, achieving efficient temperature control.

3. What are the common types of water heat exchanger?
The most widely used types are shell-and-tube, plate heat exchangers, tube-in-tube, air-cooled heat exchangers, and hybrid multi-pass exchangers. Each type is selected based on flow rate, temperature, and operating pressure.

4. Where are water heat exchanger used?
They are used in HVAC systems, domestic hot water heating, industrial cooling, power plants, chemical processing, marine engines, food and beverage plants, and waste-heat recovery applications.

5. What materials are water heat exchanger made of?
Common materials include stainless steel, copper, titanium, carbon steel, and nickel alloys. The choice depends on corrosion resistance, fluid compatibility, and temperature requirements.

6. How do I choose the right water heat exchanger?
Selection depends on heat load, flow rate, operating pressure, fluid type, temperature difference, space availability, and maintenance needs. Consulting a manufacturer like United Cooling Systems Pvt. Ltd. ensures proper sizing and design.

7. What are the benefits of using a water heat exchanger?
They offer high energy efficiency, waste-heat recovery, stable temperature control, reduced operating costs, compact installation options, and long-term reliability.

8. How often should a water heat exchanger be maintained?
Maintenance frequency varies based on operating conditions. Typically, inspection is recommended every 6–12 months, with cleaning when fouling, scale, or performance drops are observed. 9. What causes fouling in water heat exchanger?
Common causes include mineral scaling, biological growth, corrosion deposits, oil contamination, and sediment. Regular cleaning helps maintain thermal efficiency.

10. Can a water heat exchanger be cleaned easily?
Yes. Plate heat exchangers can be opened and cleaned manually, while shell-and-tube units may require chemical descaling or mechanical brushing depending on the design and level of fouling.

11. What safety standards apply to water heat exchanger?
Standards such as ASME, TEMA, API, BIS, and AHRI govern the design, fabrication, performance, and material quality of heat exchangers used in industrial and HVAC applications.

12. How long does a water heat exchanger last?
With proper maintenance, a high-quality heat exchanger can last between 10 to 25 years, depending on material selection, operating environment, and fluid quality.
