Marine heat exchangers are specialized thermal devices used aboard ships to manage heat transfer efficiently. Similar to industrial heat exchangers, they facilitate heating and cooling by transferring heat between two separate fluids without direct contact. The most common types used in the maritime industry are plate heat exchangers and shell-and-tube heat exchangers, designed to withstand the harsh marine environment. Regular maintenance is essential to prevent fouling, corrosion, and efficiency loss, especially due to seawater exposure. Reliable and durable, marine heat exchangers ensure optimal performance in propulsion systems, HVAC, freshwater generation, and other critical shipboard applications.

What is a Marine Heat Exchanger?

A marine heat exchanger is a device designed to transfer heat between fluids. It is primarily used in marine environments to cool engine components.

These heat exchangers are central to the efficient operation of marine engines. They help maintain optimal temperatures by removing excess heat.

In a typical marine setting, a heat exchanger cools the engine by transferring its heat to seawater. This process is continuous, ensuring the engine remains within safe temperature limits.

The key function of a marine heat exchanger is to prevent engine overheating. Overheating can lead to severe engine damage and expensive repairs.

Marine heat exchangers are tailored for different vessel requirements. They vary based on engine type, operating conditions, and marine environment.

Here are the main functions of a marine heat exchanger:

• Transferring heat between engine coolant and seawater
• Ensuring consistent engine performance
• Preventing engine overheating

The design of a marine heat exchanger is influenced by multiple factors. These include size, material, and flow rate. Durability and corrosion resistance are vital, given the harsh marine conditions.

Marine heat exchangers share similarities with other heat exchange systems. However, they are specifically engineered for unique marine challenges. Understanding these devices is key to enhancing marine engine reliability.

Marine Heat Exchanger Working Principle

Engine Coolant Loop

The engine coolant loop is the first stage of heat transfer in a ship’s cooling system. Here, freshwater or glycol absorbs the heat produced inside the engine block and carries it away. A circulation pump keeps the coolant moving through the loop, preventing hot spots and ensuring the engine operates at a stable temperature.

Seawater (Raw Water) Loop

The second loop uses seawater drawn in from the surrounding environment. This raw water flows around the tubes of the exchanger, picking up heat from the engine coolant without mixing with it. Once it has absorbed the excess heat, the seawater is released back into the ocean, completing the cooling cycle.

Heat Transfer Surface

At the core of the process is the heat transfer surface, usually made of copper-nickel, stainless steel, or titanium. These materials allow heat to pass efficiently while keeping the fluids separate. With a counterflow arrangement, where fluids travel in opposite directions, the system improves overall cooling performance and helps engines remain safe even under heavy workloads.

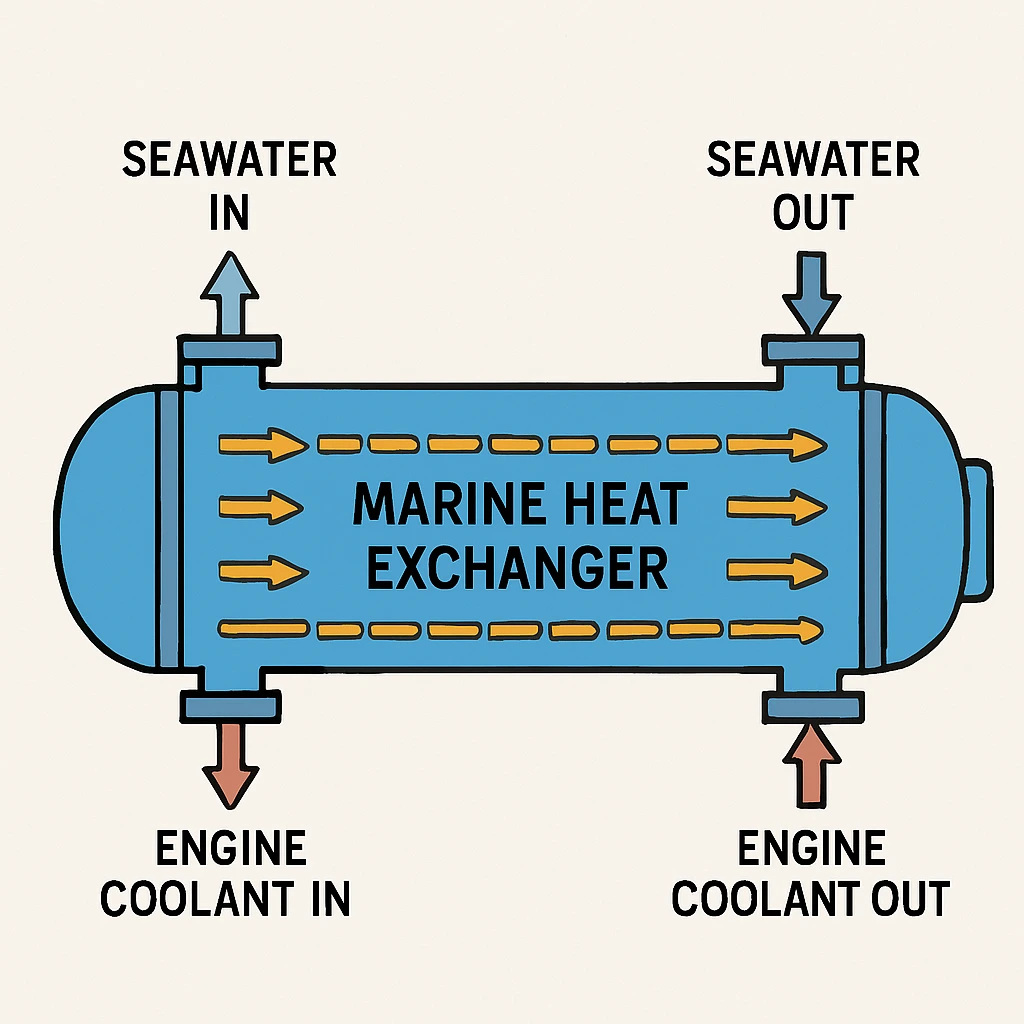

How Does a Marine Heat Exchanger Work?

The operation of a marine heat exchanger involves a simple yet effective process. It transfers heat from a hotter fluid to a cooler one, preventing engine overheating.

In marine engines, the exchanger cools engine coolant by passing it through tubes immersed in seawater. This seamless interaction with seawater helps absorb heat from the coolant.

The exchanger consists of several tubes within a larger shell. Coolant flows through the tubes while seawater circulates around them within the shell.

Key steps of heat exchanger operation include:

1. Fluid Flow: Engine coolant and seawater flow in opposite directions.
2. Heat Transfer: Heat moves from the coolant to the seawater, lowering the coolant's temperature.
3. Continuous Process: This heat exchange continues, ensuring constant cooling of the engine.

The consistent cooling keeps engines running efficiently under heavy loads. Without the exchanger, engines would quickly overheat, resulting in potential damage.

Efficiency is vital in marine heat exchangers to minimize energy losses. The heat transfer process must be optimized to handle the severe conditions found at sea.

In summary, marine heat exchangers are crucial for maintaining engine temperatures. Their design ensures that heat is effectively removed, thereby supporting prolonged engine life and performance.

Importance of Marine Heat Exchanger

Marine heat exchangers are indispensable in modern vessels. Their importance can be summarized as:

Engine Protection

Marine heat exchangers are essential for preventing engines from overheating, which can damage pistons, cylinders, and gaskets. They maintain an optimal temperature, ensuring the engine runs efficiently. Proper cooling also extends the life of expensive marine engines while reducing maintenance costs.

HVAC and Comfort

Onboard cooling systems regulate air conditioning and ventilation for crew and passengers. They maintain stable temperatures in cabins, cargo holds, and control rooms to ensure comfort and safety. Efficient heat transfer reduces energy consumption and improves HVAC system performance.

Refrigeration and Cargo Safety

Marine heat exchangers keep perishable goods, medicines, and frozen cargo at precise temperatures. They ensure refrigeration systems operate reliably during long voyages. Consistent cooling prevents spoilage, protecting valuable cargo and reducing economic losses.

Environmental Compliance

Marine cooling systems help manage ballast water treatment, minimizing the spread of invasive species. They also support proper fuel combustion, reducing pollution risks. Compliance with IMO standards ensures safe and environmentally responsible marine operations.

Key Components of a Marine Heat Exchanger

Marine heat exchangers are intricate devices featuring several key components. Each part plays a vital role in ensuring efficient heat transfer.

The shell is the outer casing that houses other components. It’s typically made from materials resistant to the corrosive marine environment.

Inside the shell are numerous tubes, which the engine coolant flows through. These tubes are often composed of copper or other conductive materials.

The baffles are components inside the shell that direct seawater flow. They enhance heat transfer by maximizing contact with the tube surfaces.

End caps seal the shell and support coolant flow into and out of the exchanger. They are designed for easy removal during maintenance tasks.

A standard marine heat exchanger has the following components:

1. Shell: Encloses the tubes and other parts.
2. Tubes: Allow coolant flow and heat transfer.
3. Baffles: Guide seawater flow.
4. End Caps: Enable access for maintenance.

Some exchangers include gaskets to prevent fluid leakage. These seals are crucial for maintaining system integrity and efficiency.

Understanding these components helps in diagnosing and troubleshooting. It also aids in identifying which part may need maintenance or replacement.

The synergy of these components results in effective heat management. Without each part working harmoniously, the heat exchanger could fail, causing engine issues.

Types of Marine Heat Exchangers

Marine heat exchangers come in various types, each designed for specific applications. The main aim is to optimize the cooling process.

The shell and tube type is the most prevalent. It is known for its robust design and efficiency in marine environments.

Another popular type is the plate heat exchanger, which is compact and ideal for small vessels. These devices offer excellent heat transfer performance.

In addition, there are air-cooled heat exchangers, though they are less common in marine settings. They are typically used in cases where seawater isn’t available.

Each type has distinct features and operational methods. It’s essential to choose one based on your marine engine’s specific needs.

When selecting a heat exchanger, consider the vessel size and engine requirements. This ensures the device functions optimally.

Most marine applications prefer the shell and tube design due to durability. However, plate heat exchangers provide space-saving solutions.

Here’s a quick overview of the main types:

1. Shell and Tube: Common and durable.
2. Plate: Compact and efficient.
3. Air-Cooled: Used in limited scenarios.

Understanding the differences among these types aids in making informed decisions. Proper selection can boost engine efficiency and longevity.

Shell and Tube Heat Exchangers

The shell and tube design is widely used in marine industries. Its durability and efficiency make it a top choice for many.

This heat exchanger consists of a series of tubes enclosed within a larger shell. The engine coolant flows through the tubes, while seawater circulates around them.

A primary benefit of this design is its ability to handle high pressures. This makes it suitable for large marine engines that require robust cooling systems.

Other notable advantages include easy maintenance and adaptability. Users can easily access the tubes for cleaning and repairs.

Key features of shell and tube exchangers include:

1. High Pressure Handling: Suitable for large engines.
2. Robust Construction: Designed for marine environments.
3. Ease of Maintenance: Convenient cleaning access.

These exchangers excel in efficiency under demanding conditions. Their design allows for effective heat transfer, crucial for marine engine operations.

Plate Heat Exchangers

Plate heat exchangers offer a compact solution. They consist of multiple thin plates stacked together. Each plate creates a channel for fluid flow.

This design enhances surface area, boosting heat transfer efficiency. It’s especially useful for small boats where space is limited.

These exchangers are easy to disassemble, allowing quick cleaning and maintenance. Users can separate the plates and clear deposits.

Advantages of plate heat exchangers include:

1. Space Efficiency: Ideal for small vessels.
2. High Heat Transfer: Increased surface area.
3. Easy Maintenance: Quick disassembly.

Their lightweight and compact nature make them cost-effective for leisure boats. They provide effective cooling in tight spaces.

Air-Cooled Heat Exchangers

Air-cooled heat exchangers are less common in marine applications. They are used when seawater is unavailable or unsuitable.

These devices rely on ambient air to dissipate heat from the engine coolant. Fans often assist in enhancing airflow across the exchanger surfaces.

Key benefits include reduced corrosion risk since no seawater is involved. However, their efficiency depends on environmental conditions.

Consider these points for air-cooled exchangers:

1. Environmentally Dependable: Efficiency varies with climate.
2. Corrosion Resistance: No seawater used.
3. Often Fan-Assisted: Enhanced air circulation.

Their use is generally reserved for specific scenarios or auxiliary marine systems.

Marine Heat Exchanger Design Considerations

Designing a marine heat exchanger involves several critical factors. Material choice is one key aspect.

Marine environments are corrosive due to saltwater exposure. It's vital to use materials like copper, titanium, or stainless steel for durability.

Size also matters in marine heat exchanger design. The unit must fit within the engine room space constraints.

Flow rate is another consideration. It impacts the heat exchanger's efficiency and overall engine performance.

Designers need to balance maximum heat transfer and minimal pressure loss. This ensures optimal functioning.

Let's examine key design aspects:

1. Material Choices:
   • Copper
   • Titanium
   • Stainless steel
2. Important Parameters:
   • Size limits
   • Flow rate optimization

The design should also include easy maintenance access. Removable covers and accessible tubes simplify cleaning and inspections.

Additionally, the exchanger must resist fouling. This involves using anti-fouling coatings or designing for easy debris removal.

Environmental conditions, such as water temperature and quality, also play a role. Engineers must consider local marine factors for custom solutions.

Finally, safety certifications are necessary for marine use. Compliance with regulatory standards ensures safe and efficient operation.

Applications of Marine Heat Exchangers

Marine heat exchangers serve multiple functions on board:

Engine Cooling

Marine heat exchangers play a crucial role in keeping main propulsion engines from overheating, ensuring reliable operation. By maintaining optimal temperatures, they help engines run efficiently and reduce fuel consumption. Proper cooling also minimizes wear on components, extending the service life of expensive engine systems.

Generator Cooling

Generators produce substantial heat while providing power to ship systems, which can impact reliability if unmanaged. Heat exchangers remove excess heat to maintain stable generator performance. This ensures uninterrupted power supply throughout long voyages and prevents costly operational interruptions.

Hydraulic System Cooling

Hydraulic pumps and oils generate significant heat during heavy-duty operations on deck equipment. Heat exchangers efficiently remove this heat, protecting steering systems, cranes, and other hydraulic machinery. Consistent cooling enhances safety and improves overall operational reliability.

Transmission and Gearbox Cooling

Marine gear systems can overheat under prolonged load, affecting performance and longevity. Oil coolers, a type of heat exchanger, effectively manage heat buildup to safeguard critical components. Maintaining safe operating temperatures helps extend gearbox life and reduce maintenance needs.

HVAC and Refrigeration

Heat exchangers support onboard HVAC systems, keeping cabins and control rooms comfortable for crew and passengers. They also ensure refrigeration systems maintain precise temperatures for perishable goods and cargo. Efficient heat transfer lowers energy consumption and improves overall system performance.

Ballast Water Treatment

Heat exchangers regulate water temperature in ballast systems, improving disinfection and reducing marine organism growth. This prevents biofouling and ensures the system operates efficiently over time. Proper temperature control also helps vessels comply with IMO ballast water regulations.

Specifications Comparison Table

Type	Efficiency	Size	Corrosion Resistance	Maintenance	Cost	Applications
Shell & Tube	Moderate-High	Large	High	Medium	High	Engine Cooling, Generators
Plate	Very High	Compact	High	Easy	Moderate	HVAC, Ballast, Refrigeration
Air-Cooled	Low-Moderate	Compact	Moderate	Easy	Moderate	Small vessels, dry regions
Double Pipe	Low	Very Compact	Moderate	Easy	Low	Small ships, localized cooling
Modular	High	Compact	High	Easy	Moderate-High	Space-limited modern ships

Benefits of Using Marine Heat Exchangers

Marine heat exchangers offer several key advantages. They are essential for maintaining optimal engine temperatures, which helps prevent overheating and engine damage.

Using a marine heat exchanger can improve fuel efficiency. Efficient heat transfer reduces energy loss, leading to lower fuel consumption and emissions.

Primary Benefits Include:

• Improved fuel efficiency
• Reduced engine overheating risk
• Lower emissions

Marine heat exchangers also contribute to environmental sustainability. By improving energy efficiency, they play a role in reducing the ecological impact of marine operations. Keeping marine engines in their ideal temperature range leads to longer engine life and better performance. The resulting cost savings from less frequent repairs are significant benefits for any vessel owner.

Marine Heat Exchanger Cleaning

Regular marine heat exchanger cleaning is crucial for efficiency. Fouling, scaling, and marine growth reduce performance.

Common Cleaning Methods:

Chemical Cleaning

Chemical cleaning involves using acid or alkaline solutions to dissolve scale, deposits, and other fouling inside the heat exchanger. It is especially effective for reaching internal surfaces that are otherwise difficult to access. All cleaning chemicals must be marine-safe to prevent environmental damage and comply with regulations.

Mechanical Cleaning

Mechanical cleaning uses brushes, scrapers, or rods to physically remove debris and buildup from the exchanger’s surfaces. This method is particularly suitable for shell and tube designs where tubes are accessible. Careful handling is essential to avoid damaging delicate components during the cleaning process.

Ultrasonic Cleaning

Ultrasonic cleaning employs high-frequency sound waves to gently dislodge fouling from exchanger surfaces. This method is effective without causing harm, making it ideal for sensitive or compact units. It is becoming increasingly popular for modern marine heat exchangers requiring precise and thorough cleaning.

Preventive Measures

Preventive maintenance helps reduce fouling and scaling, keeping marine systems efficient and reliable. Installing seawater strainers, applying antifouling coatings, and regularly flushing the system prevent salt, sediment, and debris accumulation. These measures extend the life of the exchanger and maintain optimal heat transfer efficiency.

Materials Used in Marine Heat Exchangers

Materials are vital in the construction of marine heat exchangers. They ensure durability and efficient heat transfer.

Copper is a popular choice due to its excellent heat conductivity and affordability. However, its corrosion resistance can be a concern in seawater environments.

Titanium, though more expensive, offers remarkable corrosion resistance. It is highly favored where exposure to harsh marine conditions is frequent.

Stainless steel provides a good balance between cost and durability. Its resistance to corrosion makes it a reliable option for many marine applications.

Common Materials Used:

• Copper
• Titanium
• Stainless steel

Choosing the right material involves considering cost, weight, and environmental conditions. This decision directly affects the lifespan and performance of the heat exchanger.

Recent advances in material science have introduced composites. These materials often combine strength with lightweight properties, optimizing performance for specific applications.

The choice of material can also impact maintenance frequency and overall system reliability. Thus, selecting the right one is crucial for long-term benefits.

Marine Heat Exchanger Repair

Even with proper maintenance, repairs may be necessary. Marine heat exchanger repairs typically addresses:

Leaks

• Caused by corrosion, worn seals, or cracked tubes.
• Repaired by replacing gaskets or welding damaged areas.

Reduced Heat Transfer Efficiency

• Often due to fouling or scaling.
• Repaired through thorough cleaning and flushing.

Tube Failures

• Tubes may rupture under stress or corrosion.
• Damaged tubes are plugged or replaced individually.

Pressure Drop Issues

• Caused by blockages or buildup inside channels.
• Solved by removing obstructions and restoring flow paths.

Regular inspections help detect issues early, reducing repair costs and avoiding system downtime.

Factors to Consider When Choosing Marine Heat Exchangers

Material Selection

• Titanium: best for seawater, highly corrosion resistant.
• Copper-nickel: good balance of cost and corrosion resistance.
• Stainless steel: strong and cost-effective for non-seawater systems.

Size and Capacity

• Must match the vessel’s cooling requirements.
• Oversized exchangers waste energy; undersized units risk overheating.

Efficiency and Performance

• Higher thermal efficiency reduces fuel consumption.
• Better heat dissipation improves equipment reliability.

Ease of Maintenance

• Units with cleaning ports or removable bundles simplify servicing.
• Saves time and cost during inspections.

Durability and Resistance

• Marine-grade designs withstand saltwater corrosion.
• Long-term reliability lowers total cost of ownership.

Installation of Marine Heat Exchangers

Proper installation of a marine heat exchanger is crucial for efficient operation. It's important to follow manufacturer guidelines and ensure compatibility with the engine system.

Begin the installation by assessing the available space and mounting options. Incorrect placement can lead to poor performance and increased maintenance needs.

Professional installation is recommended to ensure alignment with other system components. Inexperienced handling can compromise safety and functionality.

Key Installation Steps:

• Assess space and mounting options
• Verify compatibility with engine system
• Employ professional installation for safety

During installation, ensure all connections are secure to prevent leaks. Regular checks can help maintain the integrity of the system.

Consider the location of the heat exchanger for ease of access. This facilitates future maintenance and inspection activities, reducing the likelihood of operational issues.

Maintenance of Marine Heat Exchangers

Regular maintenance of marine heat exchangers is essential. This ensures optimal performance and extends the lifespan of the equipment.

A primary maintenance task is cleaning. Debris and marine organisms can accumulate and cause fouling, reducing heat transfer efficiency.

Routine Maintenance Activities:

• Regular cleaning to prevent fouling
• Inspecting for leaks and corrosion
• Lubricating moving parts, if applicable

Inspect the heat exchanger regularly for any leaks or corrosion. These issues can lead to severe damage if left unaddressed.

Periodic checks on the heat exchanger's components are crucial. This helps in identifying worn-out parts that need replacement.

Signs of Potential Problems:

• Reduced cooling efficiency
• Visible corrosion or leaks
• Unusual noises during operation

Replacing worn or damaged parts promptly prevents downtime. This also reduces the risk of costly repairs in the future.

Incorporate a detailed maintenance log. Documenting activities and observations helps in identifying patterns and prevents potential issues.

Common Problems and Troubleshooting

Marine heat exchangers can encounter several problems that affect efficiency. Identifying and addressing these issues early can save significant time and money.

One common issue is fouling. This happens when marine organisms or debris accumulate, blocking the heat exchanger passages and reducing heat transfer efficiency.

Typical Problems and Their Solutions:

• Fouling: Regular cleaning is crucial.
• Leaks: Inspect seals and joints regularly.
• Corrosion: Use corrosion-resistant materials.

Leaks are another frequent issue. They often occur at connection points where seals may deteriorate over time. Replace seals and check joints routinely to avoid this.

Corrosion can also pose serious risks. It typically results from exposure to saltwater. Employing corrosion-resistant materials like titanium or stainless steel can help mitigate this problem.

Regularly inspecting the heat exchanger for these signs can prevent major breakdowns. Effective troubleshooting involves systematic checks and timely maintenance. Keeping spare parts on hand and consulting professionals when necessary ensures the heat exchanger functions efficiently.

Cost Considerations

Initial Purchase Price

• Varies by type: shell and tube (higher), plate (moderate), double pipe (low).
• Titanium models are expensive but last longer in seawater.

Operational Costs

• Efficient exchangers reduce energy use and fuel costs.
• Poorly maintained units increase fuel consumption.

Maintenance Costs

• Routine cleaning is cheaper than frequent repairs.
• Using quality materials reduces long-term expenses.

Total Cost of Ownership

• Balance initial investment with efficiency, durability, and lifespan.
• Investing in high-quality marine heat exchangers pays off over time.

Innovations and Future Trends in Marine Heat Exchangers

Marine heat exchangers are continually evolving. Advances in technology aim to enhance efficiency and durability. These innovations focus on new materials and design improvements.

Emerging trends include the use of more lightweight and corrosion-resistant materials. Such materials not only reduce weight but also extend the lifespan of the heat exchangers.

Key Innovations:

• Use of innovative materials
• Enhanced design efficiency
• Improved corrosion resistance

The future of marine heat exchangers also involves integrating smart technology. Smart systems can monitor performance in real-time and prompt timely maintenance actions. This innovation minimizes unexpected failures and maximizes engine efficiency. As the maritime industry moves towards sustainable solutions, these advancements play a crucial role in reducing operational costs and environmental impact.

Marine Heat Exchanger Case Studies

Cargo Vessel – Shell and Tube Heat Exchanger for Engine Cooling

A cargo vessel was experiencing engine overheating during long voyages. We installed a high-efficiency Shell and Tube Marine Heat Exchanger, which stabilized engine temperatures and reduced maintenance downtime by 25%.

Highlights:

• Improved heat transfer for high-load engines
• Reduced fuel consumption
• Reliable, long-lasting performance

Offshore Vessel – Air-Cooled Heat Exchanger for Auxiliary Systems

An offshore vessel needed a waterless cooling solution due to limited seawater availability. We supplied Air-Cooled Marine Heat Exchangers, reducing dependency on seawater and minimizing corrosion issues.

Highlights:

• Uses ambient air for cooling, no seawater needed
• Low maintenance and long service life
• Suitable for hot and dry environme

Conclusion

Marine heat exchangers play a vital role in ensuring the safety, efficiency, and reliability of ships. From engine cooling to HVAC, ballast water treatment, and refrigeration, these systems are essential for smooth and uninterrupted vessel operations. By selecting the right type of heat exchanger and maintaining it through regular cleaning and timely repairs, ship operators can extend equipment lifespan, reduce fuel costs, and minimize downtime.

Invest in high-quality marine heat exchangers from United Cooling Systems Pvt. Ltd. today to enhance your vessel’s performance, improve operational efficiency, and safeguard critical onboard systems. 📞Contact United Cooling Systems today now to find the perfect solution for your ship.

Marine Heat Exchanger FAQs

1. What are marine heat exchangers made of?
Marine heat exchangers are typically made from corrosion-resistant materials such as copper-nickel, stainless steel, titanium, or other alloys. These materials ensure long-lasting performance in harsh seawater environments.

2. What are the heat exchangers used in ships?
Common types of heat exchangers used on ships include:

• Shell and Tube Heat Exchangers – for engine and generator cooling
• Plate Heat Exchangers – for HVAC, ballast water, and refrigeration
• Air-Cooled Heat Exchangers – for waterless cooling applications
• Double Pipe Heat Exchangers – for localized or compact cooling
• Modular/Compact Heat Exchangers – for space-limited modern vessels

3. What is a heat exchanger in a ship?
A heat exchanger in a ship is a device that transfers heat between two fluids without mixing them, ensuring engines, HVAC systems, and other critical equipment maintain optimal operating temperatures.

4. What is the purpose of a marine heat exchanger?
The purpose of a marine heat exchanger is to:

• Prevent engine overheating
• Cool auxiliary systems like HVAC, refrigeration, and hydraulic systems
• Maintain safe and efficient vessel operations/li>
• Reduce fuel consumption and maintenance costs/li>

5. What is the working principle of a heat exchanger?
Marine heat exchangers work on the principle of heat transfer. One fluid (e.g., engine coolant) passes through tubes or plates, while a second fluid (e.g., seawater or air) flows around it. Heat moves from the hot fluid to the cooler fluid without mixing, regulating system temperatures efficiently.

6. Who is the manufacturer of marine heat exchangers?
United Cooling Systems Pvt. Ltd. is a leading manufacturer of high-quality marine heat exchangers in India, offering solutions for engines, HVAC, refrigeration, hydraulic systems, and ballast water treatment.
